MGJY10-30WS double spindle Multiple rip saw For Processing wood logs
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | Easwon |
| Certificação: | CE |
| Número do modelo: | MGJY10-30WS |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | negotiated |
| Detalhes da embalagem: | estojo de madeira |
| Tempo de entrega: | 25 dias |
| Termos de pagamento: | L/c, t/t |
| Habilidade da fonte: | 50 conjuntos por mês |
|
Informação detalhada |
|||
| Modelo: | MGJY10-30WS | Diâmetro de serrar: | 100-300 mm |
|---|---|---|---|
| Comprimento de serra: | 600-4000 mm | Velocidade de alimentação: | 0-10m/min |
| Diamter do eixo: | 60mm | Principal principal: | 30kW + 37kW |
| Poder do motor de alimentação: | 1,5kW x 2 | Comprimento da tabela de funcionamento: | 2000mm Front, 2000mm de volta |
| Doença: | Novo | Garantia: | 1 ano |
| Destacar: | double spindle rip saw,wood log processing saw,woodworking band saw machine |
||
Descrição de produto

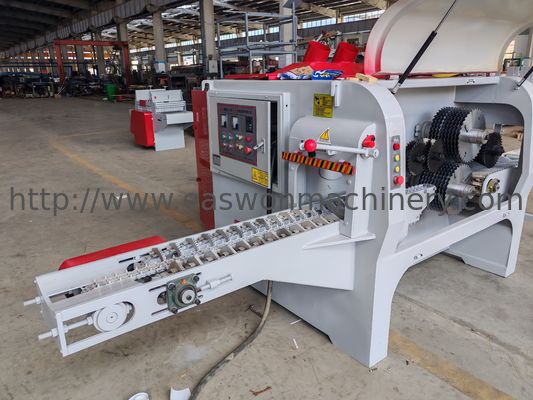

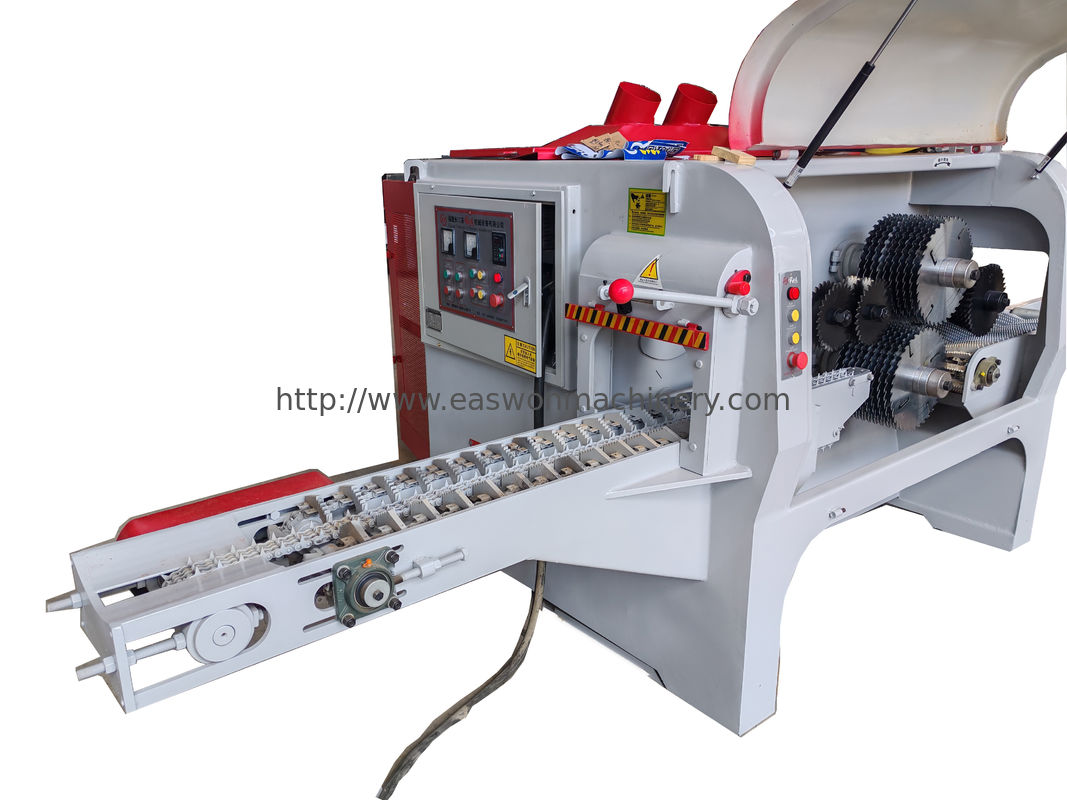

MGJY10-30WS Automatic Log Multiple Rip Saw
MGJY10-30WS Automatic Log Multiple Rip Saw is an advanced machine designed for efficiently cutting logs with the diameter of 300mm or less into multiple parallel boards. With automated operation, it ensures high precision and productivity in the lumber industry. The machine is equipped with max. 16pcs saw blades, allowing for simultaneous ripping of logs, significantly reducing processing time and labor costs. It is ideal for large-scale sawmills, offering consistent cuts and high throughput, while minimizing waste. The system's ease of operation and maintenance makes it a valuable tool for increasing overall production efficiency.
Specifications:
| Technical specification | Unit | MGJY10-30WS |
| Main motor power | kw | 30 + 37 |
| Spindle speed | r/min | 2800 |
| Feeding motor power | kw | 1.5kw x 2 |
| Sawing diameter | mm | 100-300 |
| Sawing length | mm | 600-4000 |
| Spindle diameter | mm | 60 |
| Feeding speed | m/min | 0-10 |
| Max. saw blade quantity | pcs | 16 |
| Working table length | mm | 2000 front, 2000 back |
| Saw blade size | mm | 420x(3.4-3.8)x60x36T+4 |
| Cooling water pressure | Mpa | 0.3-0.6 |
| Cooling way of saw blade | / | Axis water spray |
| Overall dimension | mm | 4000x1600x1550 |
| Net weight | kg | 2800 |
Package and shipping:
The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
